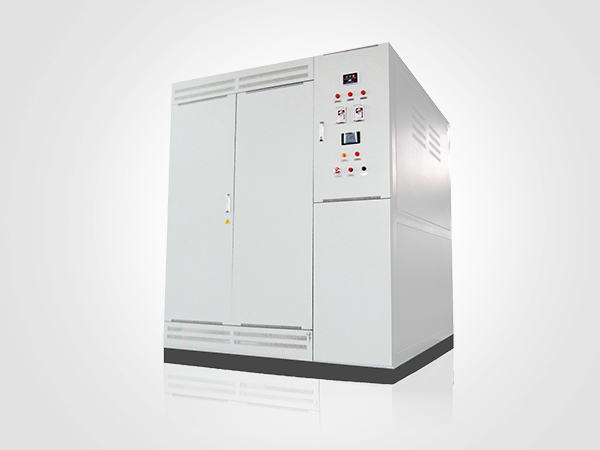

Remarks：L.V Reactive power compensation device is applied in the secondary side of the arc furnace transform
Application
L.V Reactive power compensation device is applied in the secondary side of the arc furnace transformer and rectifier transformer. Which is not only increase the system factors and reduce the output harmonics, also increase the efficiency of arc furnace transformer and rectifier transformer.
Main Characteristics
High level of system design capability and simulating capability: simulate calculation for various operation conditions by our first class testing means, system design capability and simulating capability. And can select optimum parameter for the system and equipment.
Real-time display: equipped controller can display the power factor,voltage, current, reactive power, active power, and support the setting of system parameter and reactive power parameter online.
Complete protection measurement: overcurrent, short circuit, overvoltage, under-voltage protection, no phase etc. ; Equipped with molded case circuit breakers for every drawer of cutting unit, can cut off the short circuit current in capacitor to increase the reliability of the equipment.
Convenient operation and maintenance: adopt draw out type design structure which is convenient for operation, maintenance and overhauling. The other unit can operate normally to increase efficiency if only do maintenance for single unit.
Modular design: independent design for each circuit branch, there are optimum partition for the internal space. Installed different parts in different area, reduce the running ambient temp. for the capacitor.
High reliability and safety: adopt special ventilation design, use vertical natural cooling and horizontal forced cooling. Fit long operation time and higher ambient temperature especially.
